FUJIKURA CLAMP-S70 SERIES – SHEATH CLAMP
- Sheath Clamps CLAMP-S70 series are used exclusively with Fujikura 70S series and 19S.
- Two types of sheath clamps are available for different fibre type and coating diameter.
| Item | CLAMP S70S | CLAMP S70D |
|---|---|---|
| Applicable number of fibre | Single | |
| Coating Diameter | 100 to 1000µm | 900µm loose tube fibre |
| Cleave Length | 5 to 16mm | |
| Fibre Holding | Magnetic clamping | |

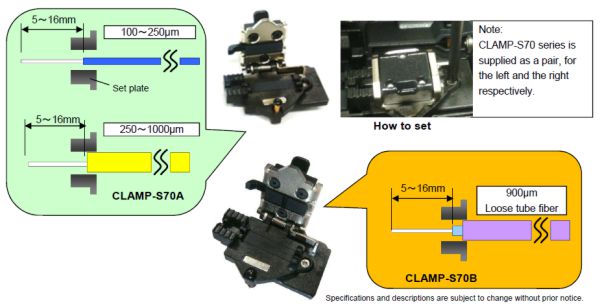

| Sheath Clamp setting onto splicer | Sheath clamp is to be set on a slide stage with a screw, the location is controlled by the two guide-pins. The open lid direction can be changed depending on operation style. | |
| Dimensions | 42L x 29W x 26H (mm) | |
| Weight | 35g for 1 pair | |
| Use for | 70S, 19S **CLAMP-S70A is a standard item for 70S and 19S |
|
