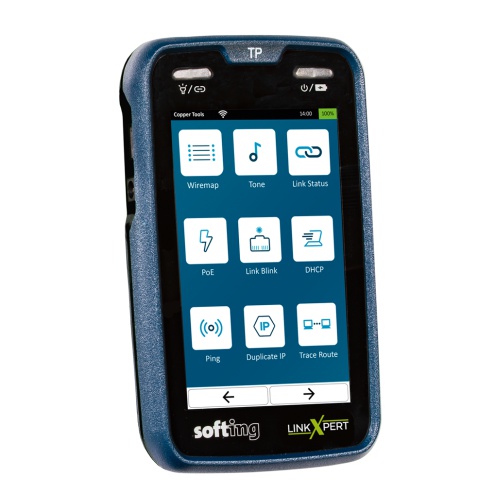

LinkXpert TP
The multitool for easy testing of twisted pair LAN networks.
LinkXpert TP offers extensive passive and active link test and network diagnostic capabilities for copper-based Ethernet networks.
LinkXpert TP is the ideal companion for the installation and troubleshooting of copper networks up to their documentation. Both in SOHO (Small Office, Home Office) environments and in industrial applications. The device offers a unique combination of cable testing and comprehensive Ethernet network diagnostics to help users solve day-to-day problems and keep business up and running around the clock.
For network commissioning, LinkXpert TP can run automatic tests that can be configured individually. For troubleshooting, all tests can also be run individually.
- Optimized for passive and active copper tests up to 1Gb/s Ethernet
- Individual test scenarios through easily configurable test profiles
- Load tests up to High Power PoE++ (90W / Class 8)
- Easy to use – clear user interface with large 51/4″ touch display
- Comprehensive documentation options (also via PC software*)
- Entry-level model with outstanding price/performance ratio
| Specification | Value |
|---|---|
| Copper cable and network tests | Wiremap, length, tone generator, PoE++ load test, link speed detection, switch port LED activation, DHCP, DNS, ping, traceroute, network discovery, duplicate address scanner, LLDP, CDP, VLAN discovery/use, MAC spoofing |
| Display | 51/4″ TFT touchscreen |
| Dimensions | 160 x 93 x 33mm |
| Weight | 400g (incl. battery) |
| Rechargeable battery | 7.2V Li-Ion 3.12Ah , internal, not user replaceable |
| Battery life | up to 8 hrs for Wiremap test |
| Power supply (device) | 12V DC, 2.5A, circular connector, Center Plus |
| External power supply | AC 100-240V / DC 12V, 3A , EURO, UK and US connection |
| Voltage protection | 60V DC, 55V AC |
| Operating temperature | -10 to 50°C |
| Storage temperature | -20 to 60°C |
| Humidity | 10% to 80%, non-condensing |
| Copper cabling | • Twisted pair, RJ45 connector • Coax, F-connector (with optional accessories) • Adapter cables for other connectors such as M12 D, M12 X, IX available as accessories |
| Ethernet | 10Mb/s, 100Mb/s, 1000Mb/s |
| PoE | IEEE 802.3af, IEEE 802.3at up to class 8, 90W |
| Ports | • RJ45 • RJ11/RJ12, M12 D, M12 X and coax via optional adapter cables • USB-A Port |
| Tone generator | Integrated, configurable for twisted pair and coax cabling |
| Flashlight | Integrated, white LED |
